Cable Management Solution

Monoduct

Our MONODUCT brand offers high-performance PVC cable trunking and channel systems for structured electrical and data cable management across commercial, industrial, and residential applications.

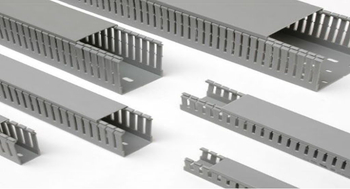

MONODUCT PVC Channels

Fast installation and easy maintenance.

Rigid Polyvinyl Chloride for safe, clean, and long-lasting cable management.

Material

Rigid Polyvinyle Choloride

Colour

Grey/White

Material grade

Fire Retardant & Low Smoke (FRLS)

Key features

Elegant look with a premium finish that keeps wiring installations professional.

Fire retardant and Low Smoke (FRLS). Grey/White.

High dielectric strength; withstands temperature up to 60°C.

Non-flammable, non-wrap, non-brittle.

Will not peel, chip or crack.

Resists oil, salt solution and fungus.

Fast installation and easy maintenance.

Available in various sizes to suit different wiring requirements.

Technical specifications

Tensile strength

320 kg/cm

Izod impact

7 kg/cm

Dielectric strength

16 kV/mm

Specific resistance

6.1 x 10 ohm.o

Flammability

UL94 V-0

MONODUCT PVC CHANNEL
(CABLE DUCTS)

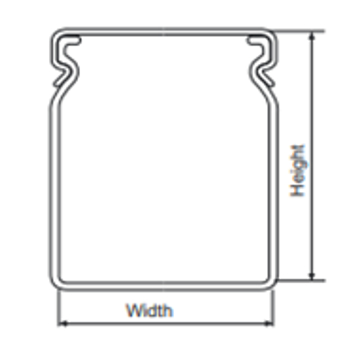

Type - A

Sl.No	Size H x W	Cable Housing Capacity (Nos)			Packing Per Box	Slotting	Standard Colour	Type
Sl.No	Size H x W	1.5 mm² OD 3.53 MM (16 AWG)	2.5 mm² OD 3.53 MM (14 AWG)	4.0 mm² OD 4.01 MM (12 AWG)	Packing Per Box	Slotting	Standard Colour	Type
1	25 x 25	31	25	20	100 Nos	SS & UNS	Grey	A
2	30 x 25	37	30	23	100 Nos	SS & UNS	Grey	A
3	45 x 25	56	45	35	100 Nos	SS & UNS	Grey	A
4	60 x 25	74	60	47	80 Nos	SS & UNS	Grey	A
5	45 x 45	100	81	63	50 Nos	SS & UNS	Grey	A
6	60 x 45	134	108	84	50 Nos	SS & UNS	Grey	A
7	75 x 45	167	145	112	50 Nos	SS & UNS	Grey	A
8	45 x 60	134	108	84	50 Nos	SS & UNS	Grey	A
9	60 x 60	178	145	112	50 Nos	SS & UNS	Grey	A
10	75 x 75	278	226	175	32 Nos	SS & UNS	Grey	A
11	80 x 80	316	257	199	24 Nos	SS & UNS	Grey	A
12	100 x 100	495	401	311	18 Nos	SS & UNS	Grey	A

TYPE - A

Type - B

Sl.No	Size W x H	Cable Housing Capacity (Nos)			Packing Per Box	Slotting	Standard Colour	Type
Sl.No	Size W x H	1.5 mm² OD 3.53 MM (16 AWG)	2.5 mm² OD 3.53 MM (14 AWG)	4.0 mm² OD 4.01 MM (12 AWG)	Packing Per Box	Slotting	Standard Colour	Type
1	25 x 25	31	25	20	100 Nos	TS & UNS	Grey	B
2	25 x 40	48	39	31	100 Nos	TS & UNS	Grey	B
3	25 x 50	50	41	33	50 Nos	TS & UNS	Grey	B
4	25 x 60	72	57	45	50 Nos	TS & UNS	Grey	B
5	25 x 80	92	75	59	50 Nos	TS & UNS	Grey	B
6	40 x 40	81	65	51	64 Nos	TS & UNS	Grey	B
7	40 x 60	121	98	77	50 Nos	TS & UNS	Grey	B
8	40 x 80	160	130	102	48 Nos	TS & UNS	Grey	B
9	40 x 100	200	164	128	36 Nos	TS & UNS	Grey	B
10	45 x 45	100	81	63	50 Nos	TS & UNS	Grey	B
11	50 x 65	134	108	84	40 Nos	TS & UNS	Grey	B
12	60 x 60	180	146	114	50 Nos	TS & UNS	Grey	B
13	60 x 80	245	199	156	30 Nos	TS & UNS	Grey	B
14	60 x 100	308	247	194	30 Nos	TS & UNS	Grey	B
15	80 x 80	337	272	214	32 Nos	TS & UNS	Grey	B
16	80 x 100	416	332	248	24 Nos	TS & UNS	Grey	B
17	100 x 60	316	256	201	12 Nos	TS & UNS	Grey	B
18	100 x 100	531	429	336	18 Nos	TS & UNS	Grey	B

TYPE - B

TYPE - A (Standard Slot) SS

TYPE - B (Thin Slot) TS

MONODUCT PVC CHANNEL
(UPVC CABLE DUCTS)

Type - B

Sl.No	Size W X H	Cable Housing Capacity (Nos)			Packing Per Box	Slotting	standard Colour	Type
Sl.No	Size W X H	1.5 mm² OD 3.53 MM (16 AWG)	2.5 mm² OD 3.53 MM (14 AWG)	4.0 mm² OD 4.01 MM (12 AWG)	Packing Per Box	Slotting	standard Colour	Type
1	25 x 25	31	25	20	100 Nos	UNS	WHITE	B
2	25 x 50	50	41	33	50 Nos	UNS	WHITE	B
3	25 x 80	92	75	59	50 Nos	UNS	WHITE	B
4	40 x 40	81	65	51	64 Nos	UNS	WHITE	B
5	40 x 80	160	130	102	48 Nos	UNS	WHITE	B
6	40 x 100	200	164	128	36 Nos	UNS	WHITE	B
7	50 x 50	100	81	63	50 Nos	UNS	WHITE	B
8	50 x 65	134	108	84	40 Nos	UNS	WHITE	B
9	60 x 60	180	146	114	30 Nos	UNS	WHITE	B
10	60 x 80	245	199	156	30 Nos	UNS	WHITE	B
11	60 x 100	308	247	194	30 Nos	UNS	WHITE	B
12	80 x 80	337	272	214	32 Nos	UNS	WHITE	B
13	80 x 100	416	332	248	24 Nos	UNS	WHITE	B
14	100 x 60	316	256	201	12 Nos	UNS	WHITE	B
15	100 x 100	531	429	336	18 Nos	UNS	WHITE	B
